The versatile, particularly stable classicline stands out clearly from other machines in the same segment thanks to the latest drive technology and convenient operating elements.
If the tip width needs to be larger.

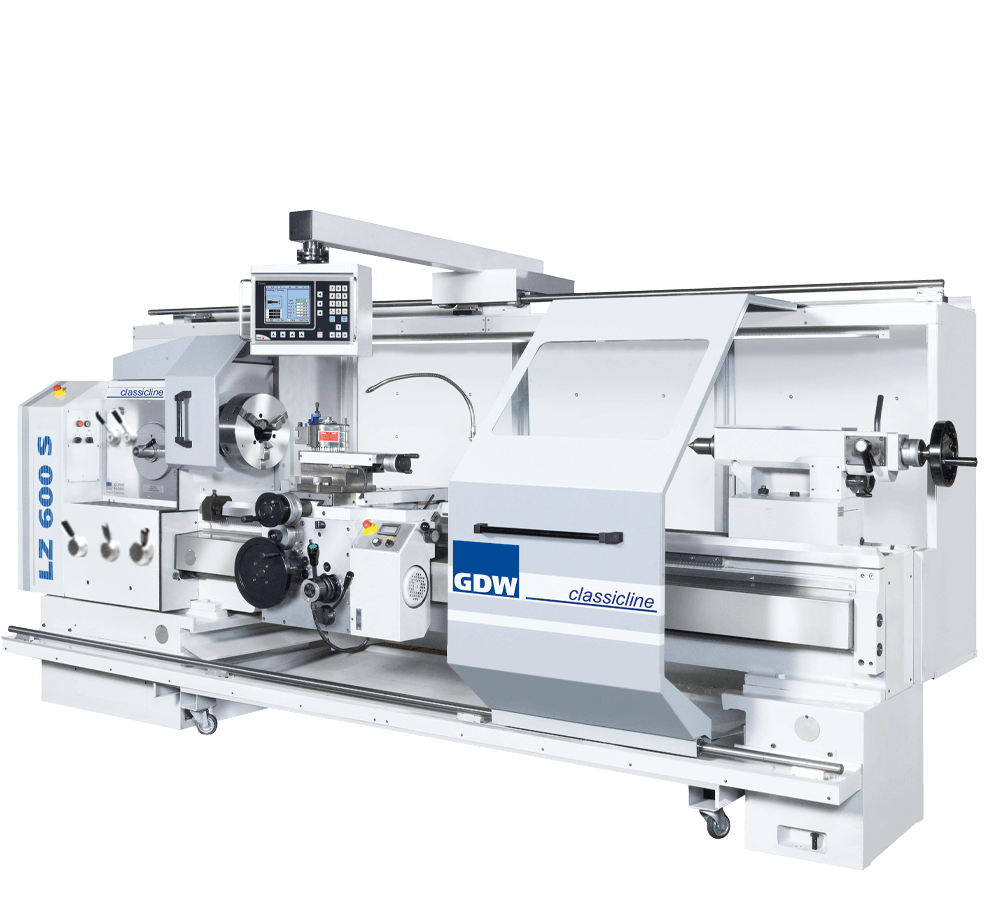

LZ600S: Powerful without compromises
The largest of the classicline series. The LZ 600S model offers a powerful main spindle drive with a large spindle bore.
Special features:
- Stepless main spindle drive
- Finely balanced main spindle
- High safety standard
- Partial cladding with sliding chip guard
- Single-lever control on the lock case
- Stepless feed and thread cutting range
- Rapid traverse for X- and Z-axis
- Vibration-damped machine base
- Hardened and ground guideways
- Automatic handwheel disengagement
- Central lubrication for the most important lubrication points
- Countershaft headstock for high torque
- Tailstock with drag device and 1:1 and 1:4 reduction for quill movement
- Extensive training material
- Very flexible due to extensive range of accessories
Facts & Figures
GDW CLASSICLINE
Infinitely variable main drive, 24 or 48-stage feed gear for setting feed rates and thread pitches, comprehensive safety package included.
Model | Circulation | Rotation | Center distance | Spindle bore | Drive power | Speed range |
|---|---|---|---|---|---|---|
LZ 250SN-H | 330 | 190 | 500 | 43 | 4,5 | 30-4000 |
LZ 280S | 330 | 190 | 670 | 43 | 5,5 | 30-4000 |
LZ 600S | 600 | 400 | 1000 | 82/103 | 15 | 8-2000 |
LZ 600S | 600 | 400 | 1500 | 82/103 | 15 | 8-2000 |
LZ 600S | 600 | 400 | 2000 | 82/103 | 15 | 8-2000 |
LZ 600S | 600 | 400 | 3000 | 82/103 | 15 | 8-2000 |
