High-precision cycle lathe for fast parts production.

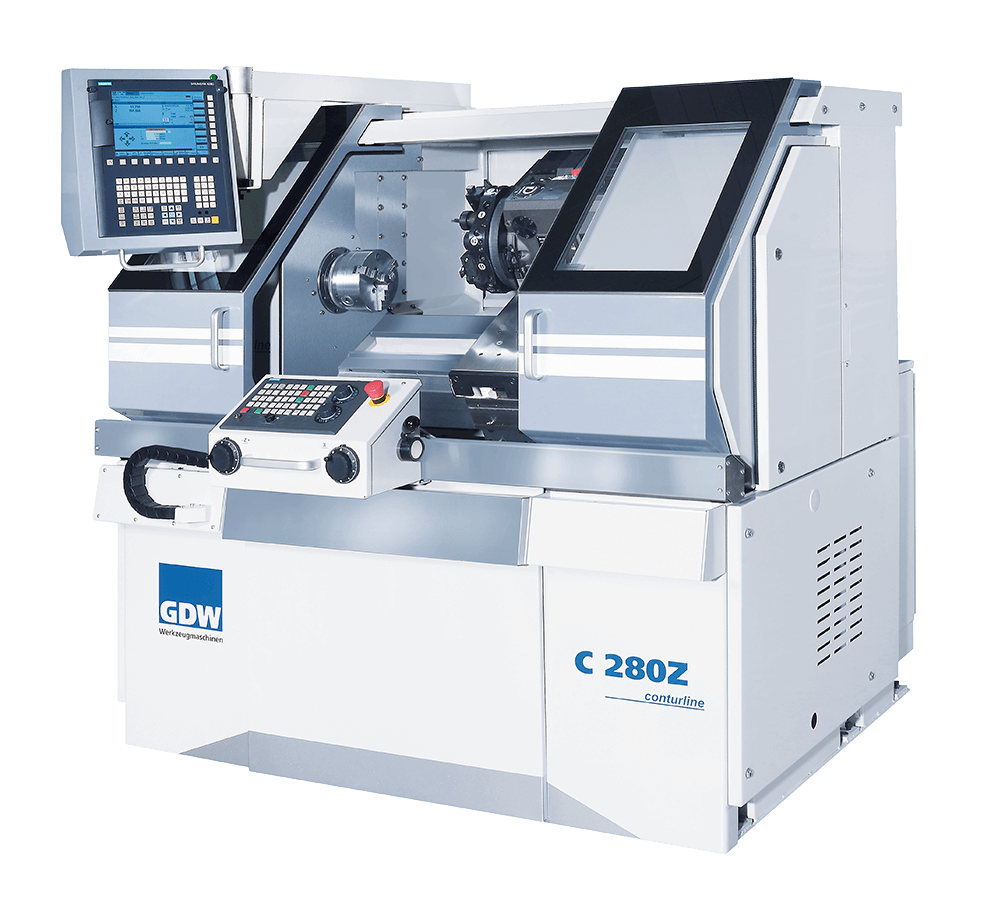

C280Z: Compact design with generous traverse paths

The C 280Z is characterised in particular by its unique ergonomic machine design - making it a genuine high-performance machine. This makes it a genuine high-performance machine.

Areas of application:

Fixture and mould making
Medical technology
Energy and environmental technology
Training and further education
General mechanical engineering
Research and development workshops

Special features:

Clearly organised work area
Retractable chip trolley
Quick-change tool holder size B with insert BD 25120
LED machine light
Protective flange for spindle head DIN 55027-5
Main spindle brake
Coolant device
Travelling control panel
Sliding doors with safety glazing

Facts & Figures

GDW CONTURLINE

The ideal addition for anyone who frequently produces components with contours, radii or in large quantities. Compact design paired with generous traverse paths, inclined bed, innovative, patented guide system, state-of-the-art Siemens control technology with additional GDW, user interface, sophisticated, simple chip disposal.

Model	Circulation over bed mm	Rotation over slide mm	Center distance mm	Spindle bore mm	Drive power kW	Speed range Rpm
C 280Z	380	185	650	43	10/7	1-4500
C 400Z	450	220	10000	62	14,5/10,5	1-4000
350CNC	350	190	400	58	7,5	30-6000

Perfect for automation with the cobot

INDUSTRY 4.0

This is still dummy text; it will be replaced with something useful when the opportunity arises. Until then it serves as a placeholder text. You still need a little patience. This is still dummy text, it will be replaced with something useful when the opportunity arises. Until then it will be used as a placeholder text. You still need a little patience.
