The cycle and CNC-controlled lathes from the GDW programme for the economical production of individual and series parts. The equipment ranges from 2-axis to complete machining centres.
Modern, elegant design and innovative technology.

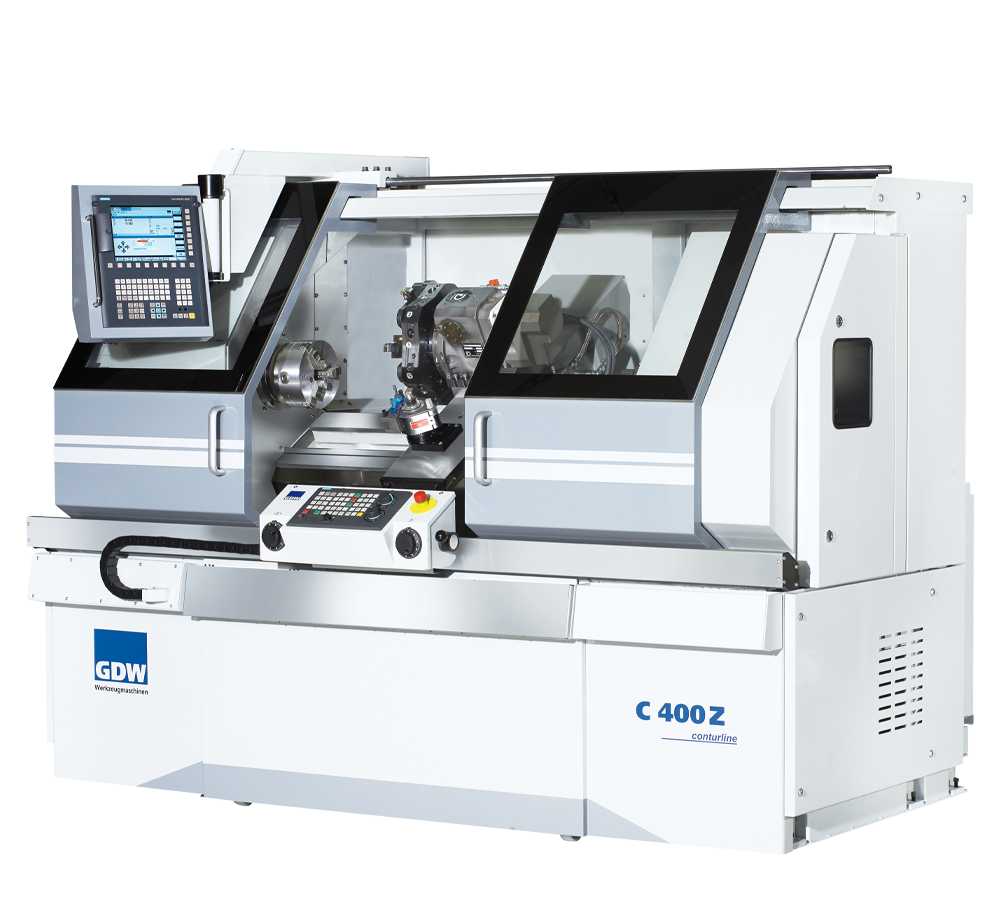

C400Z: The largest cycle lathe from GDW
The ergonomic inclined bed design with linear guidance in the X and Z axes allows operators a perfect view of the tool and unhindered access when setting up the machine. This not only saves time and is convenient, it is above all the basis for high-precision work and maximum positioning accuracy.
Areas of application:
- Fixture and mould making
- Medical technology
- Energy and environmental technology
- Training and further education
- General mechanical engineering
- Research and development workshops
Special features:
- Modern control systems with GDW-specific operating philosophy from single cycles to complete machining.
- Ergonomic GDW machine design
- Spacious work area
- Unobstructed view of the machining process
- Flexible tool systems, from manual to automatic tool change
- C-axis with driven tools
- Convenient chip disposal
- Intelligent energy management
- Linear guides for high positioning accuracy
- Patented guide protection
- High safety standard: electronic spindle brake, double sliding door with safety glazing
- Measuring equipment storage on the machine and lockable storage space for tools and clamping equipment
Facts & Figures
GDW CONTURLINE
The ideal addition for anyone who frequently produces components with contours, radii or in large quantities. Compact design paired with generous traverse paths, inclined bed, innovative, patented guide system, state-of-the-art Siemens control technology with additional GDW, user interface, sophisticated, simple chip disposal.
Model | Circulation | Rotation | Center distance | Spindle bore | Drive power | Speed range |
|---|---|---|---|---|---|---|
C 280Z | 380 | 185 | 650 | 43 | 10/7 | 1-4500 |
C 400Z | 450 | 220 | 10000 | 62 | 14,5/10,5 | 1-4000 |
350CNC | 350 | 190 | 400 | 58 | 7,5 | 30-6000 |
