The precision lead and feed spindle lathes for use in trade, industry, toolmaking, training centers and vocational schools.
Generous with extremely compact dimensions.

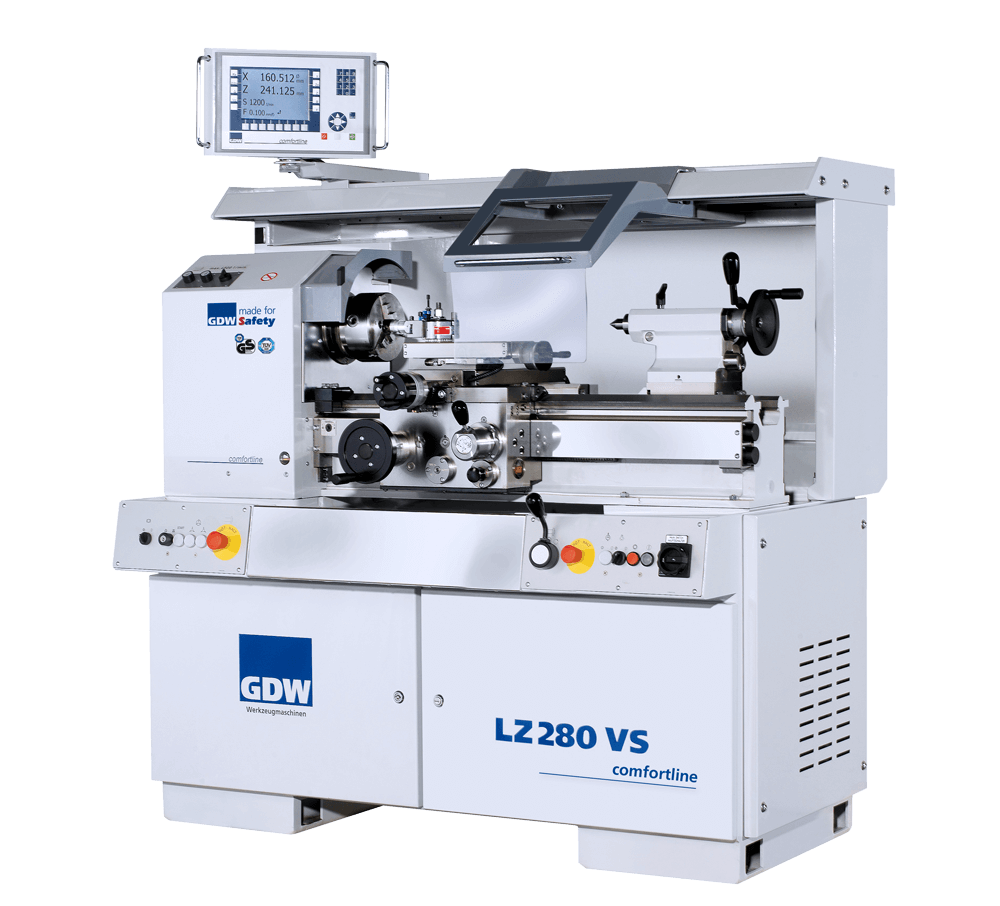

LZ280VS: Our popular bestseller
The modern LZ 280VS lathe is ideal for basic and advanced training as well as for demanding users in a wide range of applications. Generous working space with compact external dimensions - this also makes it interesting for companies with limited space.
Areas of application:
- Jig and mold making
- Medical technology
- Energy and environmental technology
- Training and further education
- General mechanical engineering
- Research and development workshops
Special features:
- Stepless main spindle drive
- Finely balanced main spindle
- High safety standard
- Partial cladding with sliding chip guard
- Single-lever control on the lock case
- Stepless feed and thread cutting range
- Vibration-damped machine base
- Removable chip tray
- Lockable tool cabinet integrated in the machine base
- Hardened and ground guideways
- Automatic handwheel disengagement
- Central lubrication for the most important lubrication points
- Roller-guided support and boring tailstock
- Extensive training material
- Very flexible due to extensive range of accessories
Facts & Figures
GDW COMFORTLINE
Unrivalled ease of use thanks to intuitive user interface, energy-saving, extremely durable.
Model | Circulation | Rotation | Center distance | Spindle bore | Drive power | Speed range |
|---|---|---|---|---|---|---|
LZ 250VS-H | 330 | 190 | 500 | 43 | 5,5 | 30-5000 |
LZ 280VS | 330 | 190 | 670 | 43 | 7,5 | 30-5000 |
LZ 400VS1 | 400 | 225 | 1000 | 62 | 10,5 | 30-4000 |
LZ 400VS2 | 400 | 225 | 1000 | 62 | 10,5 | 30-5000 |
LZ 600VS | 600 | 400 | 1000-3000 | 82/103 | 15 | 8-2000/6-1500 |
