Innovations that make turning better and easier.

LZ400VS1 and VS2: Two models, many possibilities

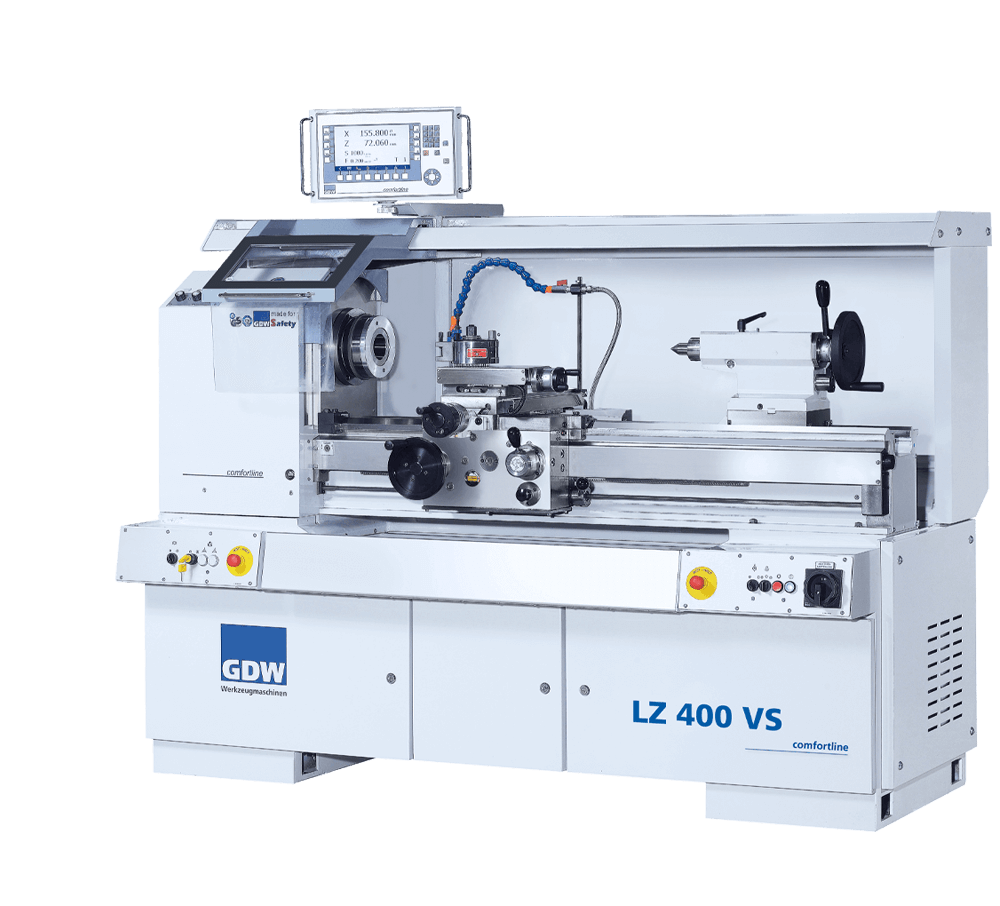

The LZ 400VS1 is characterized by a powerful direct drive to the main spindle. The speed range of 30 - 4,000 rpm is infinitely variable without an additional switching stage. The LZ 400VS1 impresses with its extremely smooth running. The damping behavior from the headstock to the stress-free annealed substructure is excellent. Another plus point: The LZ 400VS1 combines a very good price-performance ratio with extensive basic equipment.

The top model in the 400 series is the LZ 400VS2. It offers the user the option of engaging an additional reduction gear for machining operations that require a high torque at low speeds. The switching stages are monitored by sensors.

Areas of application:

Fixture and mould construction
Medical technology
Energy and environmental technology
Training and further education
General mechanical engineering
Research and development workshops

Special features:

Stepless main spindle drive
Finely balanced main spindle
High safety standard
Partial panelling with sliding chip guard
Single-lever control on the lock case
Stepless feed and thread cutting range
Vibration-damped machine base
Removable chip tray
Lockable tool cabinet integrated in the machine base
Hardened and ground guideways
Automatic handwheel disengagement
Centralised lubrication for the most important lubrication points
Countershaft headstock for high torque (VS2)
Roller-guided support and boring tailstock
Extensive training material
Very flexible thanks to extensive range of accessories

Facts & Figures

GDW COMFORTLINE

Unrivalled ease of use thanks to intuitive user interface, energy-saving, extremely durable.

Model	Circulation over bed mm	Rotation over slide mm	Center distance mm	Spindle bore mm	Drive power kW	Speed range Rpm
LZ 250VS-H	330	190	500	43	5,5	30-5000
LZ 280VS	330	190	670	43	7,5	30-5000
LZ 400VS1	400	225	1000	62	10,5	30-4000
LZ 400VS2	400	225	1000	62	10,5	30-5000
LZ 600VS	600	400	1000-3000	82/103	15	8-2000/6-1500

Accessories

GDW COMFORTLINE

Various clamping devices
Clamping mandrels
Coolant device
Minimum quantity lubrication
Position indicators
Steady rests
Extensive tool holders
Work area lighting
Special solutions
